Dual-Group Scatter Plot with Multi-Variable Marginal Boxplots

Scatter plot supporting two grouping variables (colour + shape) with separate marginal boxplots for each grouping variable. Right-side panels show column-wise boxplots, bottom panels show row-wise boxplots, arranged via patchwork area layout. Suitable for multi-cohort PCoA/NMDS analysis or two-factor gene correlation plots.

Usage

PlotScatter2(
  data,
  x,
  y,
  group,
  group2 = NULL,
  colors = NULL,
  shapes = NULL,
  fill_colors_shape = NULL,
  point_size = 2,
  point_alpha = 0.8,
  show_ellipse = FALSE,
  show_cor = FALSE,
  cor_method = "pearson",
  show_regression = FALSE,
  reg_method = "lm",
  annot_text = NULL,
  annot_pos = NULL,
  annot_size = 5,
  xlab = NULL,
  ylab = NULL,
  x_top = TRUE,
  marginal_type = c("boxplot", "violin", "violin_box"),
  box_width = 0.7,
  base_size = 16,
  legend_color_pos = "none",
  legend_shape_pos = c(0.15, 0.15),
  layout_main = 10,
  layout_margin = 3,
  filename = NULL,
  width = 14,
  height = 12,
  dpi = 300
)

Arguments

data: A data.frame.
x: Column name for the X axis.
y: Column name for the Y axis.
group: Column name for colour grouping (e.g. Study).
group2: Column name for shape grouping (e.g. Group). NULL = no shape grouping.
colors: Named colour vector for group levels. NULL = auto palette.
shapes: Named shape vector for group2 levels. NULL = auto.
fill_colors_shape: Fill colours for group2 in marginal boxplots. NULL = auto.
point_size: Point size. Default 2.
point_alpha: Point transparency. Default 0.8.
show_ellipse: Whether to draw group ellipses (based on group). Default FALSE.
show_cor: Whether to auto-compute and display correlation. Default FALSE.
cor_method: Correlation method: "pearson" or "spearman". Default "pearson".
show_regression: Whether to show a regression line. Default FALSE.
reg_method: Regression method: "lm" or "loess". Default "lm".
annot_text: Annotation text in main plot (e.g. PERMANOVA). NULL = none. Manual input overrides show_cor auto text.
annot_pos: Annotation position c(x, y). NULL = auto top-left.
annot_size: Annotation text size. Default 5.
xlab: X axis label. NULL = column name.
ylab: Y axis label. NULL = column name.
x_top: Whether to place X axis on top. Default TRUE.
marginal_type: Marginal plot type: "boxplot", "violin", or "violin_box".
box_width: Box/violin width in marginal plots. Default 0.7.
base_size: Base font size. Default 16.
legend_color_pos: Colour legend position. Default "none" (shown via marginal boxes).
legend_shape_pos: Shape legend position. Default c(0.15, 0.15).
layout_main: Main plot grid size (rows/cols). Default 10.
layout_margin: Marginal plot grid size (rows/cols). Default 3.
filename: Output file path. NULL = no save.
width: Output width in inches. Default 14.
height: Output height in inches. Default 12.
dpi: Output resolution. Default 300.

Value

A patchwork object (combined plot).

Details

For single-group scatter with marginal boxplots, see [PlotScatter1()]. For paired scatter with rotated histogram inset, see [PlotScatter3()].

Examples

library(ggplot2)

# Simulated multi-cohort PCoA data
set.seed(42)
df <- data.frame(
  PC1   = c(rnorm(20, -1), rnorm(20, 1), rnorm(20, 0)),
  PC2   = c(rnorm(20, 0.5), rnorm(20, -0.5), rnorm(20, 0)),
  Study = rep(c("Study_A", "Study_B", "Study_C"), each = 20),
  Group = rep(c("Ctrl", "Case"), 30)
)

# Single grouping (colour only)

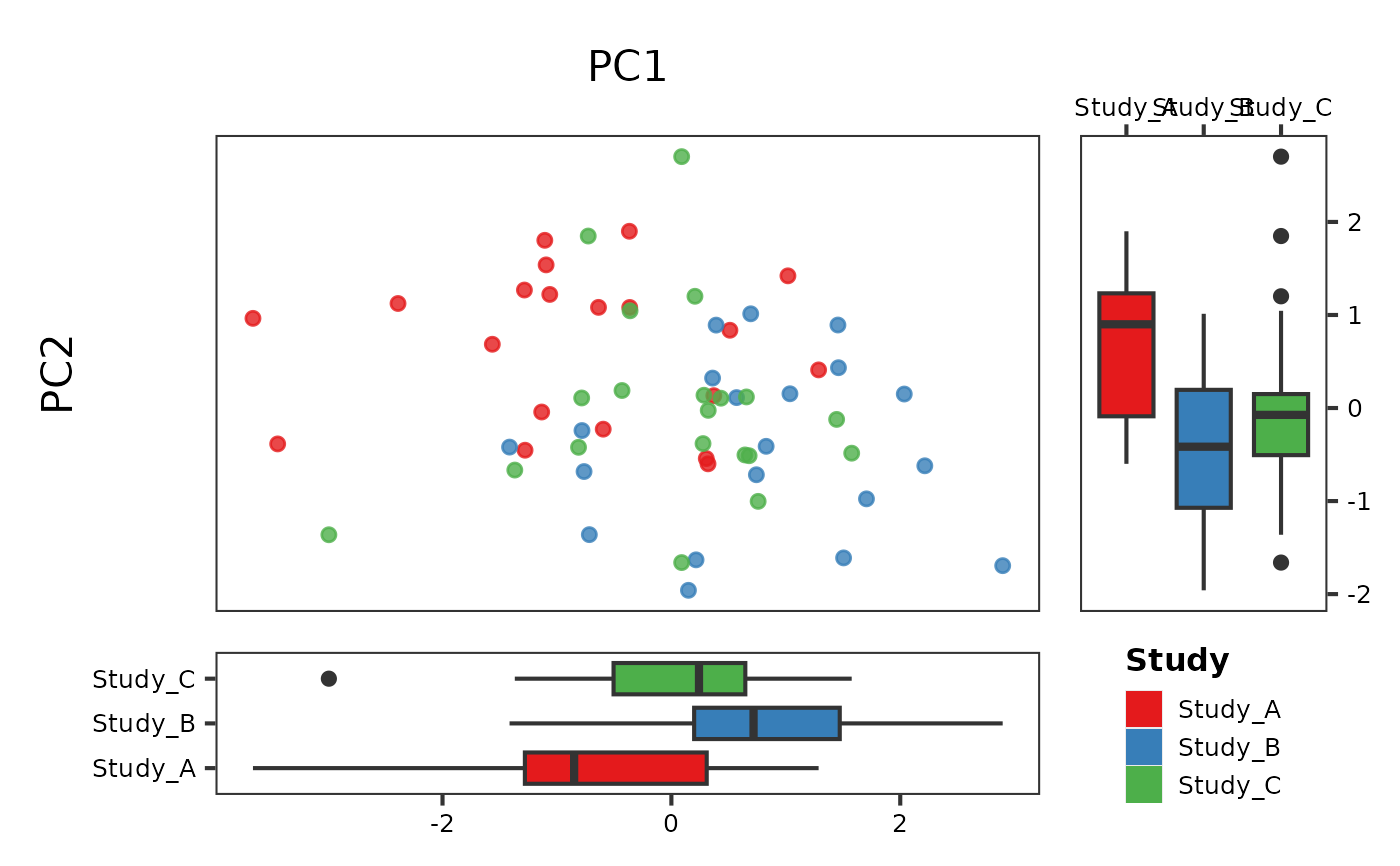

PlotScatter2(df, x = "PC1", y = "PC2", group = "Study")

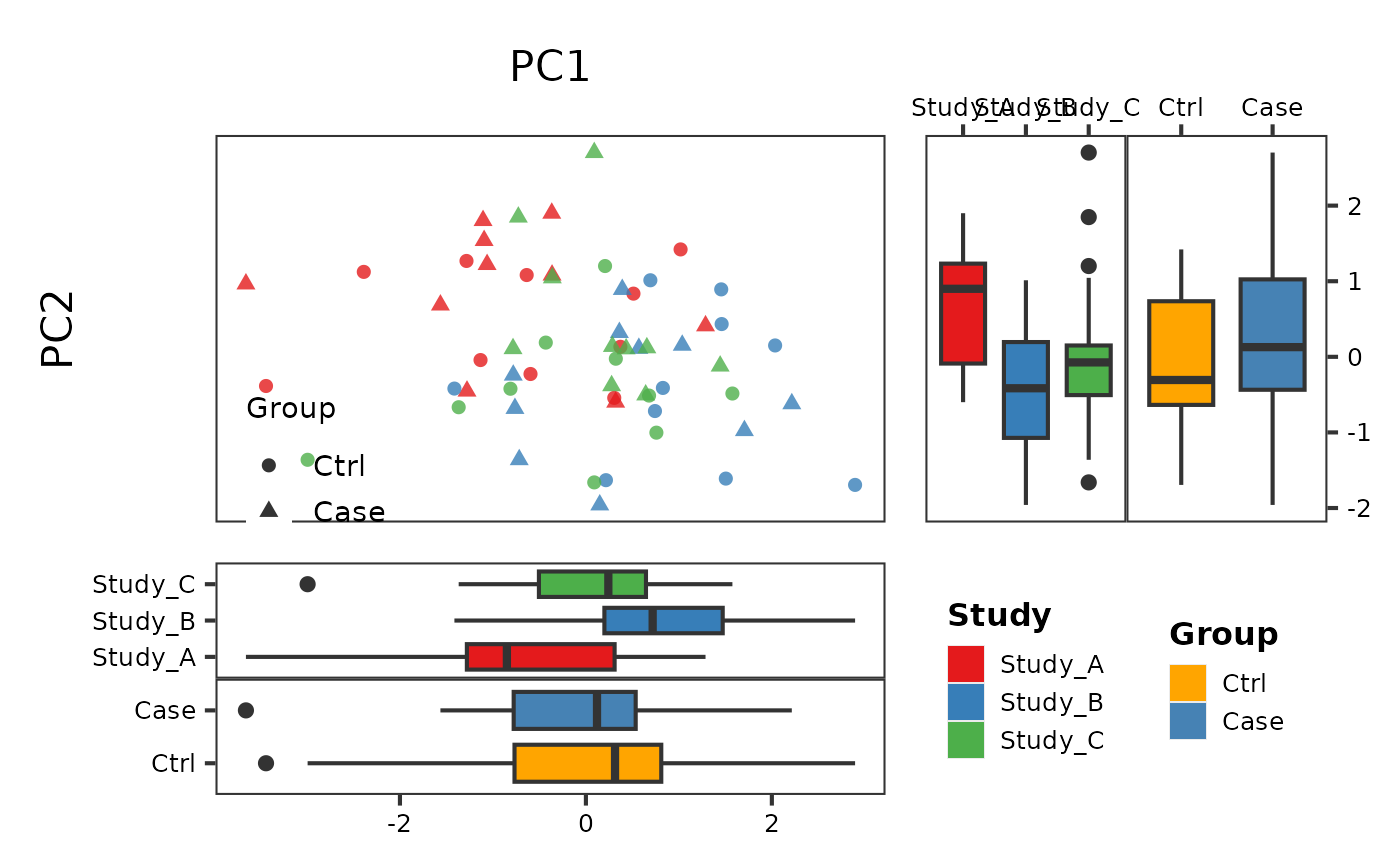

# Dual grouping (colour + shape)
PlotScatter2(df, x = "PC1", y = "PC2",
             group = "Study", group2 = "Group")

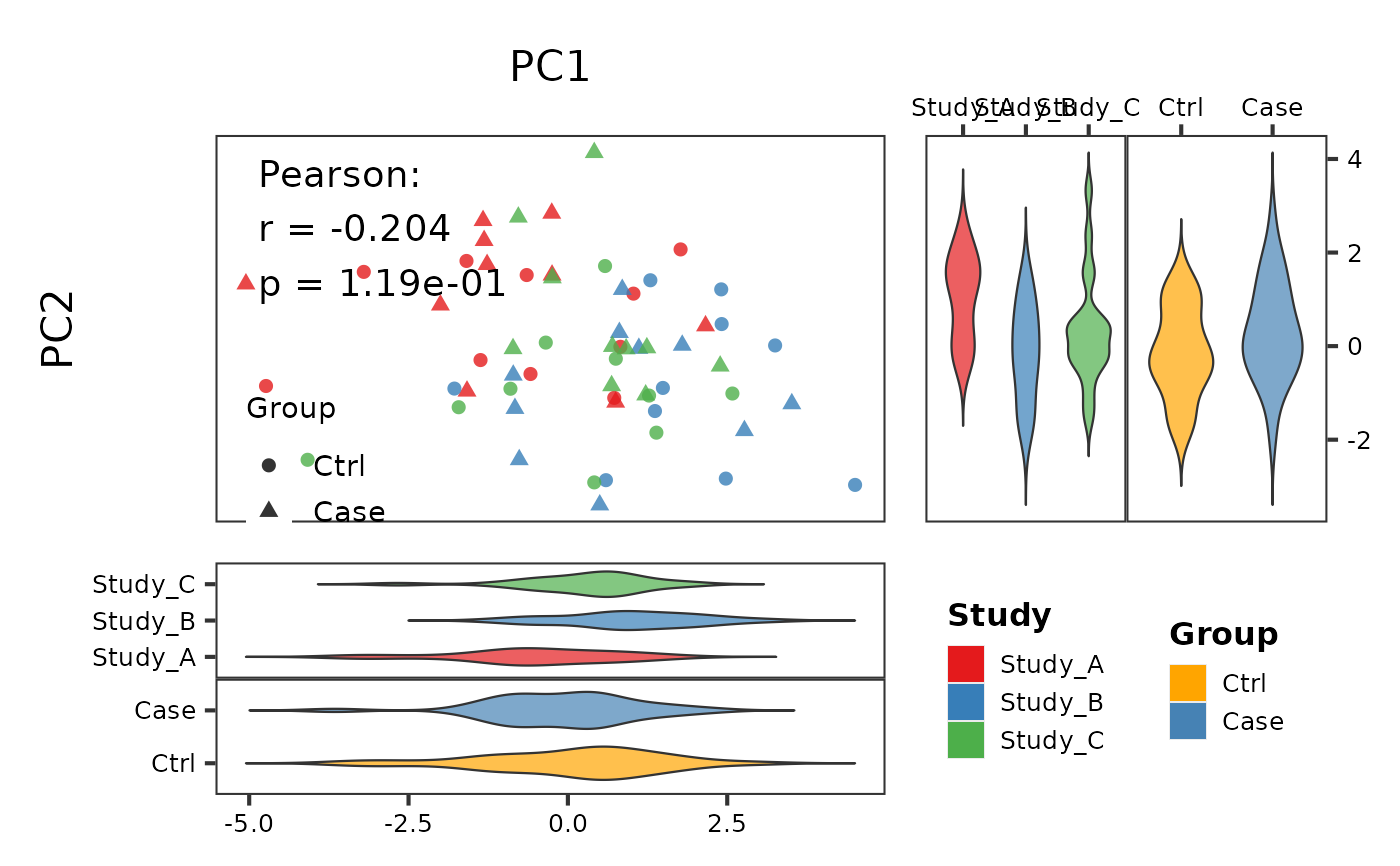

# With correlation and violin marginals
PlotScatter2(df, x = "PC1", y = "PC2",
             group = "Study", group2 = "Group",
             show_cor = TRUE, marginal_type = "violin")
