Butterfly Plot from Long-Format Data

Source: R/PlotButterfly2.R
PlotButterfly2.Rd

Create a butterfly (back-to-back) plot from a single long-format data frame. The group.by column (exactly 2 levels) defines the left/right panels. An optional fill.by column adds a dodge dimension.

Usage

PlotButterfly2(
  data,
  stat.by = NULL,
  value.by = NULL,
  group.by = NULL,
  fill.by = NULL,
  type = c("violin_box", "violin", "box", "beeswarm", "beeswarm_quasirandom"),
  levels = NULL,
  palette = NULL,
  alpha = 0.85,
  box.width = 0.15,
  add_point = FALSE,
  pt.size = 0.8,
  pt.alpha = 0.5,
  violin.scale = "width",
  dodge.width = 0.8,
  color_by = c("fixed", "logFC"),
  fixed_color = "#f33131",
  gradient_colors = c("#2166AC", "white", "#B2182B"),
  cex = 0.3,
  ref.line = NULL,
  ref.color = "#bf1a2c",
  text.colors = NULL,
  left.title = NULL,
  right.title = NULL,
  left.title.color = "#f04625",
  right.title.color = "#00a8ee",
  title = NULL,
  xlab = NULL,
  base_size = 14,
  legend.position = "bottom",
  legend_theme = NULL,
  width = 12,
  height = 8,
  filename = NULL
)

Arguments

data

Data frame in long format. Each row is one observation.

stat.by

Character. Column for the y-axis categories.

value.by

Character. Column for the continuous x-axis value.

group.by

Character. Column defining the left/right panels (must have exactly 2 unique levels).

fill.by

Character or NULL. Column for dodge grouping. Default NULL.

type

Chart type: "violin_box" (default), "violin", "box", "beeswarm", or "beeswarm_quasirandom".

levels

Display order for y-axis categories. One of: NULL (default), "up" (ascending by mean), "down" (descending), or a character vector.

palette

Colour palette for fill.by levels. Default NULL uses pal_lancet.

alpha

Numeric 0–1. Fill/point transparency. Default 0.85.

box.width

Numeric. Boxplot width. Default 0.15.

add_point

Logical. Overlay jittered points (violin/box modes)? Default FALSE.

pt.size

Numeric. Point size. Default 0.8.

pt.alpha

Numeric. Point alpha. Default 0.5.

violin.scale

Character. How violin widths are scaled: "width" (default), "area", or "count".

dodge.width

Numeric. Dodge width. Default 0.8.

color_by

Character. Beeswarm colouring mode when fill.by = NULL: "fixed" (default, single colour) or "logFC" (gradient by value.by).

fixed_color

Character. Point colour for color_by = "fixed". Default "#f33131".

gradient_colors

Character vector of length 3 (low, mid, high) for color_by = "logFC". Default c("#2166AC", "white", "#B2182B").

cex

Numeric. Beeswarm point spacing (passed to geom_beeswarm). Default 0.3.

ref.line

Numeric or NULL. Reference line. Default NULL.

ref.color

Character. Reference line colour. Default "#bf1a2c".

text.colors

Character vector. Per-variable y-axis colours. Default NULL.

left.title, right.title

Character. Panel titles. Default NULL (auto from group.by levels).

left.title.color, right.title.color

Character. Title colours. Default "#f04625" / "#00a8ee".

title

Character. Overall title. Default NULL.

xlab

Character. X-axis label. Default NULL.

base_size

Numeric. Base font size. Default 14.

legend.position

Legend position. Default "bottom".

legend_theme

A ggplot2 theme object. Default NULL.

width, height

Numeric. Output size in inches. Default 12 / 8.

filename

Character or NULL. Save path. Default NULL.

Value

A patchwork object.

Details

Five plot types are available:

  • "violin_box": violin + boxplot overlay (default).

  • "violin": violin only.

  • "box": boxplot only.

  • "beeswarm": deterministic beeswarm points (geom_beeswarm).

  • "beeswarm_quasirandom": quasi-random beeswarm points (geom_quasirandom).

See also

PlotButterfly

Other plot: PlotButterfly(), PlotRankCor(), plt_cat(), plt_cohen(), plt_con(), plt_dist(), plt_radar(), plt_sankey(), plt_upset()

Examples

set.seed(1)
df <- data.frame(
  celltype   = rep(LETTERS[1:5], each = 40, times = 4),
  logFC      = rnorm(800),
  method     = rep(rep(c("scMMR", "miloR"), each = 200), 2),
  comparison = rep(c("PHPT", "SHPT"), each = 400)
)

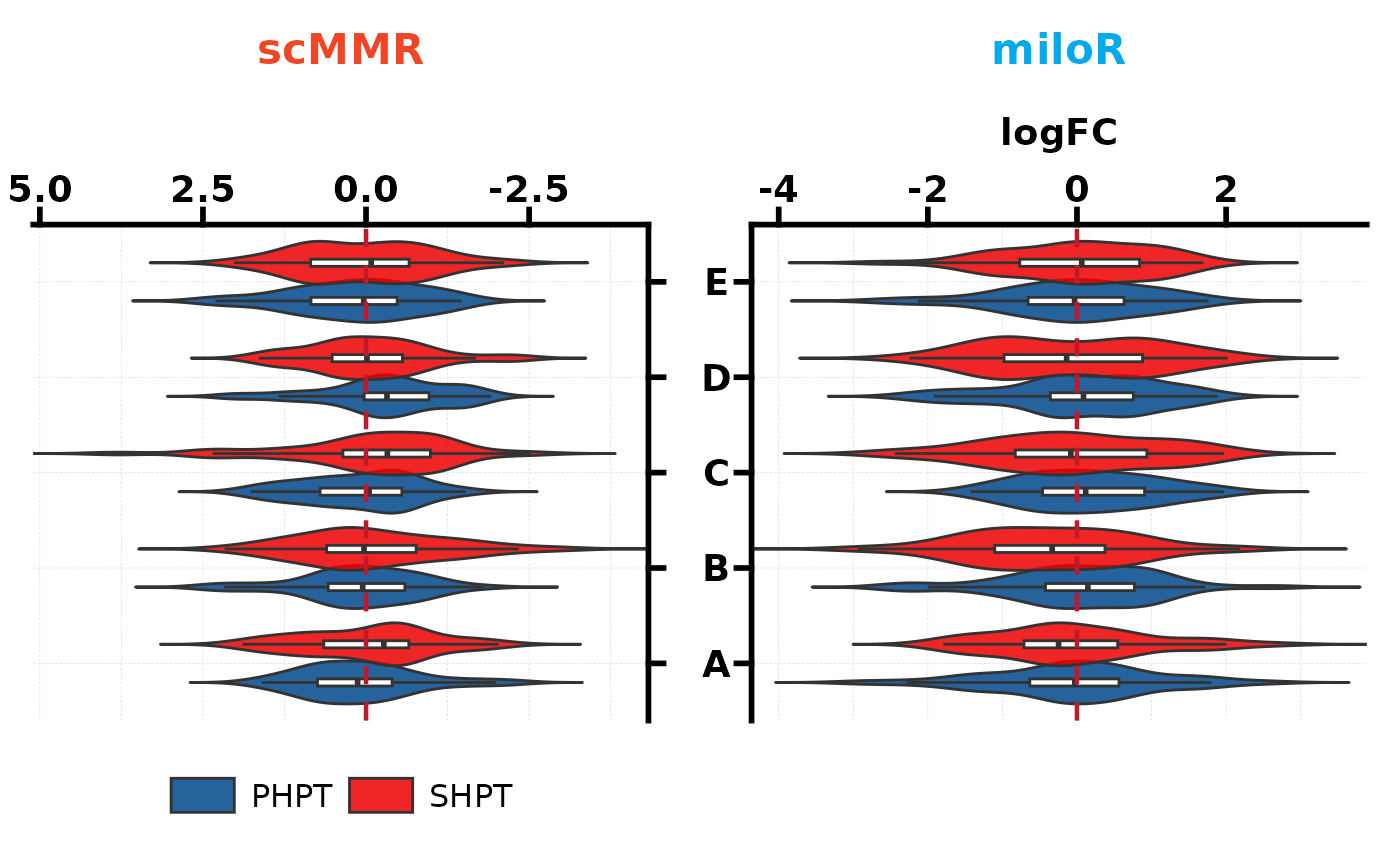

# Violin + boxplot (default)
PlotButterfly2(df, stat.by = "celltype", value.by = "logFC",
               group.by = "method", fill.by = "comparison",
               ref.line = 0)
#> Warning: Vectorized input to `element_text()` is not officially supported.
#> ℹ Results may be unexpected or may change in future versions of ggplot2.

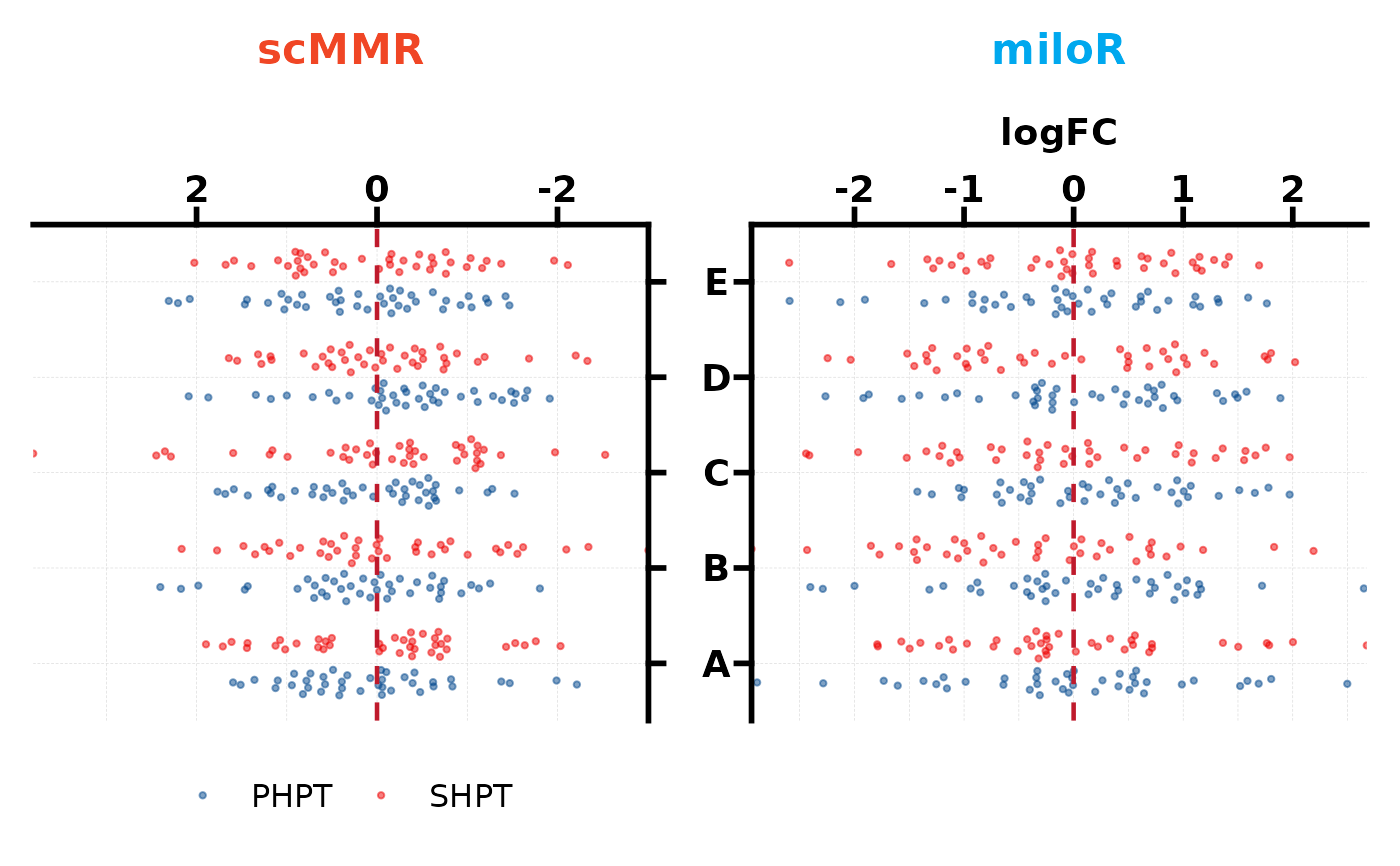

# Beeswarm with dodge
PlotButterfly2(df, stat.by = "celltype", value.by = "logFC",
               group.by = "method", fill.by = "comparison",
               type = "beeswarm_quasirandom", ref.line = 0)
#> Warning: Vectorized input to `element_text()` is not officially supported.
#> ℹ Results may be unexpected or may change in future versions of ggplot2.
#> Orientation inferred to be along y-axis; override with
#> `position_quasirandom(orientation = 'x')`
#> Orientation inferred to be along y-axis; override with
#> `position_quasirandom(orientation = 'x')`

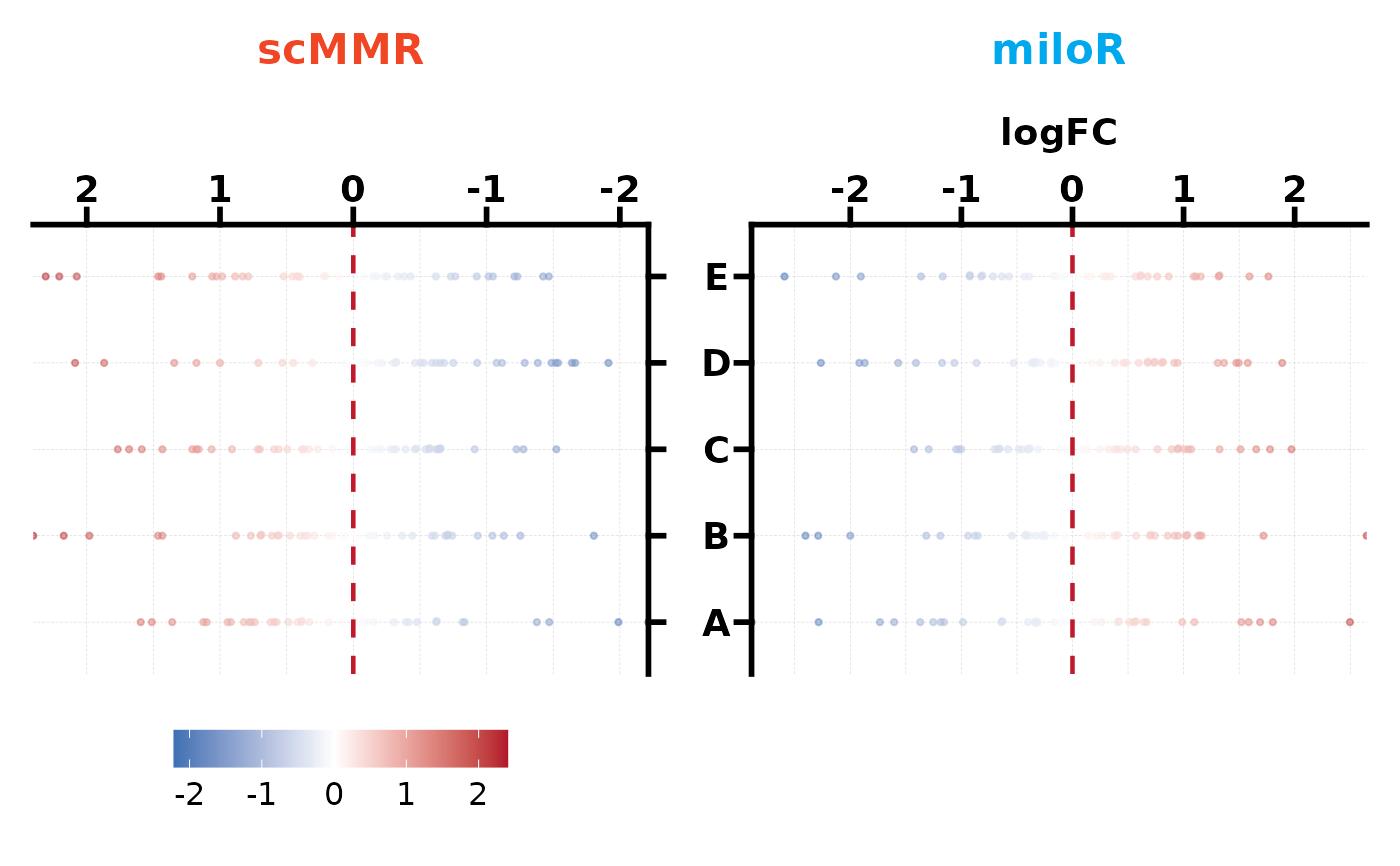

# Beeswarm with gradient colour
PlotButterfly2(df[df$comparison == "PHPT", ],
               stat.by = "celltype", value.by = "logFC",
               group.by = "method", type = "beeswarm",
               color_by = "logFC", ref.line = 0)
#> Warning: Vectorized input to `element_text()` is not officially supported.
#> ℹ Results may be unexpected or may change in future versions of ggplot2.
#> Orientation inferred to be along y-axis; override with
#> `position_beeswarm(orientation = 'x')`
#> Orientation inferred to be along y-axis; override with
#> `position_beeswarm(orientation = 'x')`
