Butterfly Chart (Back-to-Back Symmetric Plot)

Create a butterfly chart (also known as a tornado or back-to-back chart) with three modes:

"bar": stacked horizontal bar chart (e.g. Risk vs Protective counts across two groups).
"bar_dodge": side-by-side (dodged) horizontal bar chart. Each fill.by level is drawn as a separate bar instead of stacked.
"violin": mirrored violin plots comparing continuous distributions between two conditions.

Usage

PlotButterfly(
  data = NULL,
  type = c("bar", "bar_dodge", "violin"),
  stat.by = NULL,
  fill.by = NULL,
  value.by = NULL,
  group.by = NULL,
  data.left = NULL,
  data.right = NULL,
  left.title = NULL,
  right.title = NULL,
  levels = NULL,
  palette = NULL,
  alpha = 0.85,
  alpha.by = NULL,
  alpha.range = c(0.3, 1),
  minmax = FALSE,
  bar.width = 0.7,
  bar.border = "black",
  add_box = TRUE,
  box.width = 0.15,
  add_point = FALSE,
  pt.size = 0.8,
  pt.alpha = 0.5,
  ref.line = NULL,
  ref.color = "#bf1a2c",
  text.colors = NULL,
  left.title.color = "#f04625",
  right.title.color = "#00a8ee",
  title = NULL,
  xlab = NULL,
  base_size = 14,
  legend.position = "bottom",
  legend_theme = NULL,
  width = 12,
  height = 8,
  filename = NULL
)

Arguments

data

Data frame in long format (bar mode). Must contain columns specified by stat.by, fill.by, value.by, and group.by.

type

Chart type: "bar" (default, stacked), "bar_dodge" (side-by-side), or "violin".

stat.by

Character. Column name for the y-axis category labels (bar mode). Default NULL.

fill.by

Character. Column name for the stacked fill variable (bar mode, e.g. "Risk" / "Protective"). Default NULL.

value.by

Character. Column name for the numeric value (bar mode). Default NULL.

group.by

Character. Column name that defines the left vs right panels (bar mode; must have exactly 2 levels). Default NULL.

data.left

Data frame in wide format (violin mode). Each column is a variable, each row is an observation.

data.right

Data frame in wide format (violin mode). Same structure as data.left.

left.title

Character. Title for the left panel. Default NULL (auto-detected from group.by levels or "Left").

right.title

Character. Title for the right panel. Default NULL (auto-detected from group.by levels or "Right").

levels

Display order for y-axis categories. One of:

NULL (default): original data order.
"up": sort by mean value ascending (smallest at bottom).
"down": sort by mean value descending (largest at bottom).
A character vector: explicit custom order.

palette

Colour palette. One of:

NULL (default): uses pal_lancet.
A single string matching a name in palette_list: uses pal_get().
A character vector of colours: used directly.

In bar mode, colours map to fill.by levels. In violin mode, colours map to each variable.

alpha

Numeric 0–1. Fill transparency. Default 0.85.

alpha.by

Character. Column name for mapping bar fill transparency (bar mode only). When provided, the alpha of each bar is scaled by this column's values (e.g. cell type percentage), producing darker bars for higher values. Overrides the fixed alpha. Default NULL (uniform alpha).

alpha.range

Numeric vector of length 2. The output alpha range for alpha.by mapping. Default c(0.3, 1).

minmax

Logical. If TRUE, apply min-max scaling (0–1) to the value.by column within each combination of group.by and fill.by (bar mode only). Useful when comparing methods that produce values on different scales. Default FALSE.

bar.width

Numeric. Bar width (bar mode). Default 0.7.

bar.border

Character. Bar border colour. Default "black".

add_box

Logical. Overlay boxplot on violins (violin mode)? Default TRUE.

box.width

Numeric. Box overlay width. Default 0.15.

add_point

Logical. Overlay jittered points on violins? Default FALSE.

pt.size

Numeric. Jitter point size. Default 0.8.

pt.alpha

Numeric. Jitter point transparency. Default 0.5.

ref.line

Numeric. Reference line x-position (violin mode). Default NULL (none).

ref.color

Character. Reference line colour. Default "#bf1a2c".

text.colors

Character vector. Per-variable y-axis label colours (violin mode). Default NULL (all black).

left.title.color

Character. Left panel title colour. Default "#f04625".

right.title.color

Character. Right panel title colour. Default "#00a8ee".

title

Character. Overall plot title. Default NULL.

xlab

Character. X-axis label. Default NULL (auto).

base_size

Numeric. Base font size. Default 14.

legend.position

Legend position. Accepts standard ggplot2 values ("bottom", "right", "none") or a numeric vector c(x, y) for inside-plot placement. Default "bottom".

legend_theme

A ggplot2 theme object for styling the legend box, e.g. theme_legend1(). When provided, legend formatting is applied via fmt_legend. Default NULL.

width

Numeric. Output width in inches when saving. Default 12.

height

Numeric. Output height in inches when saving. Default 8.

filename

Character. File path to save the plot. Default NULL (no saving).

Value

A patchwork object.

Examples

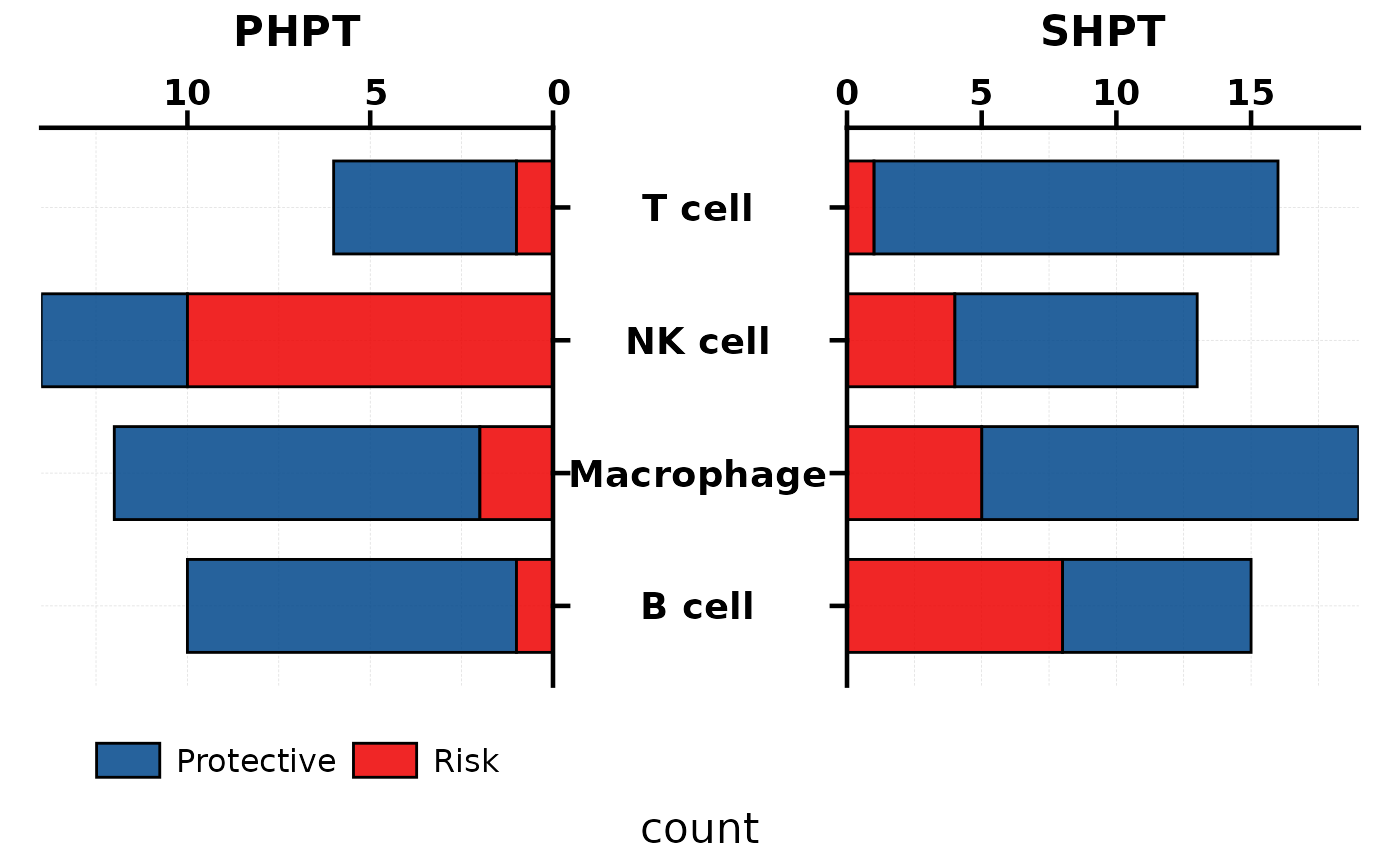

# --- Bar mode (stacked) ---
set.seed(42)
bar_df <- data.frame(
  celltype = rep(c("T cell", "B cell", "NK cell", "Macrophage"),
                 each = 2, times = 2),
  response = rep(c("Risk", "Protective"), times = 8),
  count    = sample(1:15, 16, replace = TRUE),
  group    = rep(c("PHPT", "SHPT"), each = 8)
)
PlotButterfly(bar_df, stat.by = "celltype", fill.by = "response",
              value.by = "count", group.by = "group")

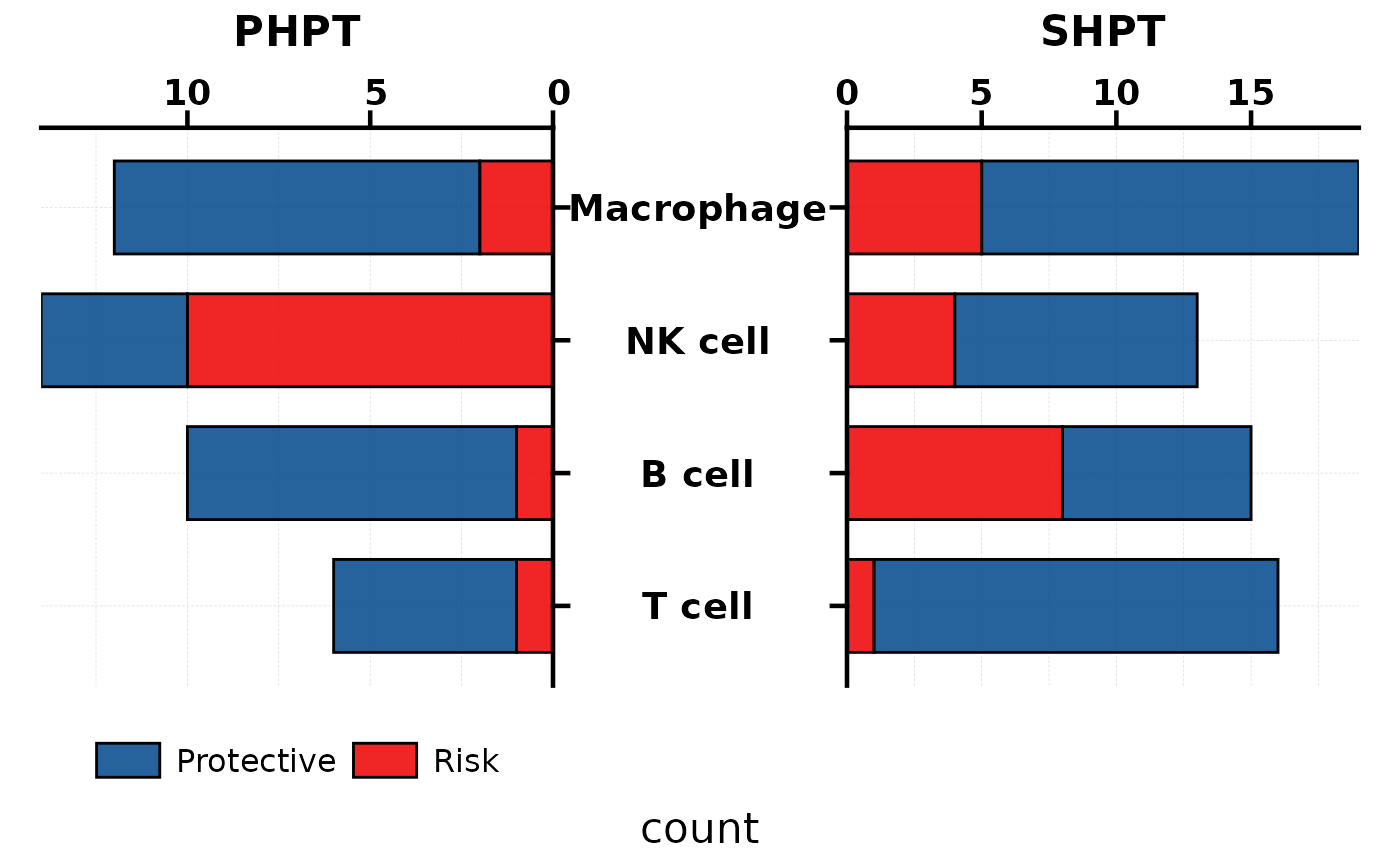

# --- Bar mode sorted by mean value (ascending) ---
PlotButterfly(bar_df, stat.by = "celltype", fill.by = "response",
              value.by = "count", group.by = "group", levels = "up")

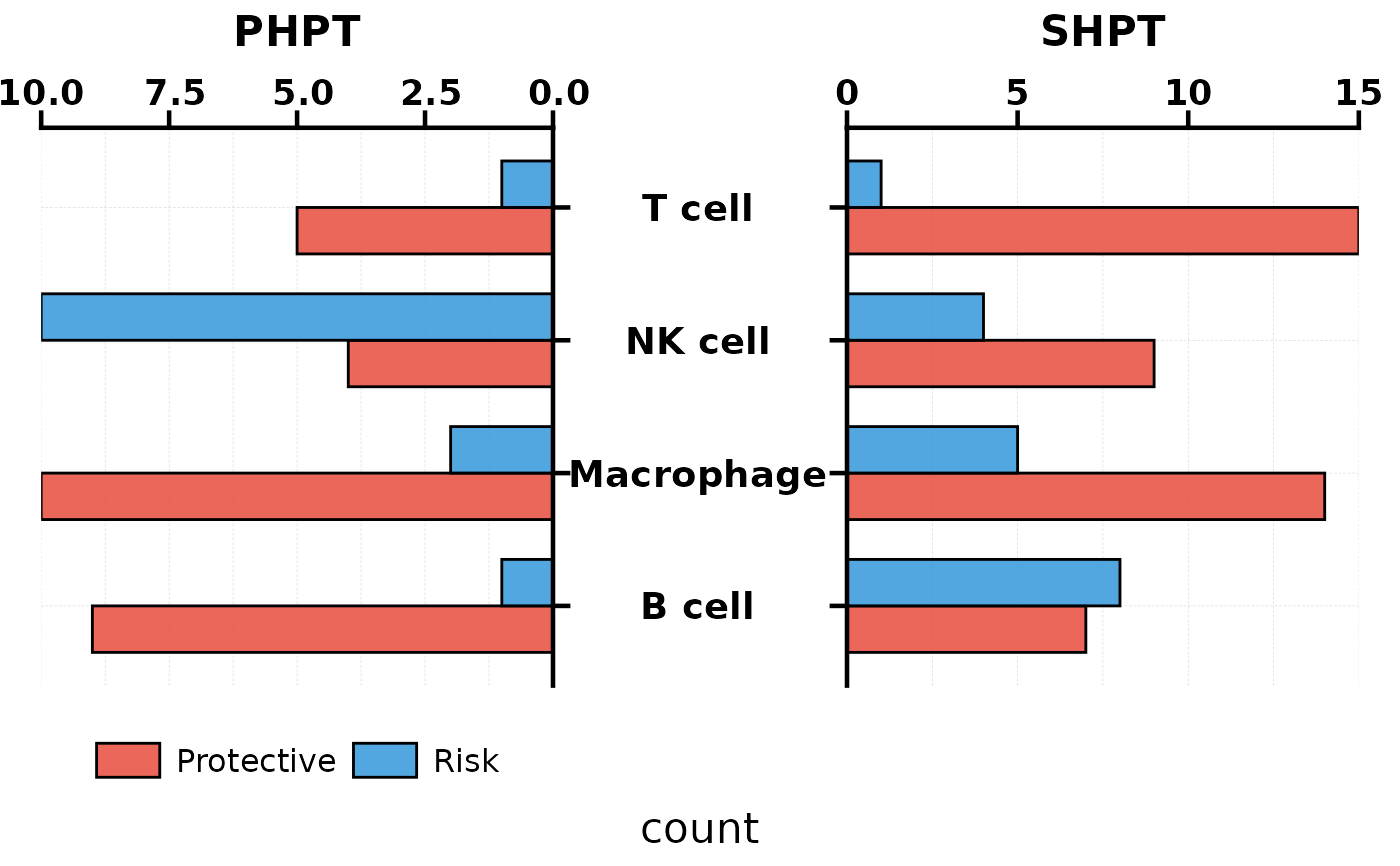

# --- Bar dodge mode (side-by-side) ---
PlotButterfly(bar_df, type = "bar_dodge", stat.by = "celltype",
              fill.by = "response", value.by = "count",
              group.by = "group",
              palette = c("#E74C3C", "#3498DB"))

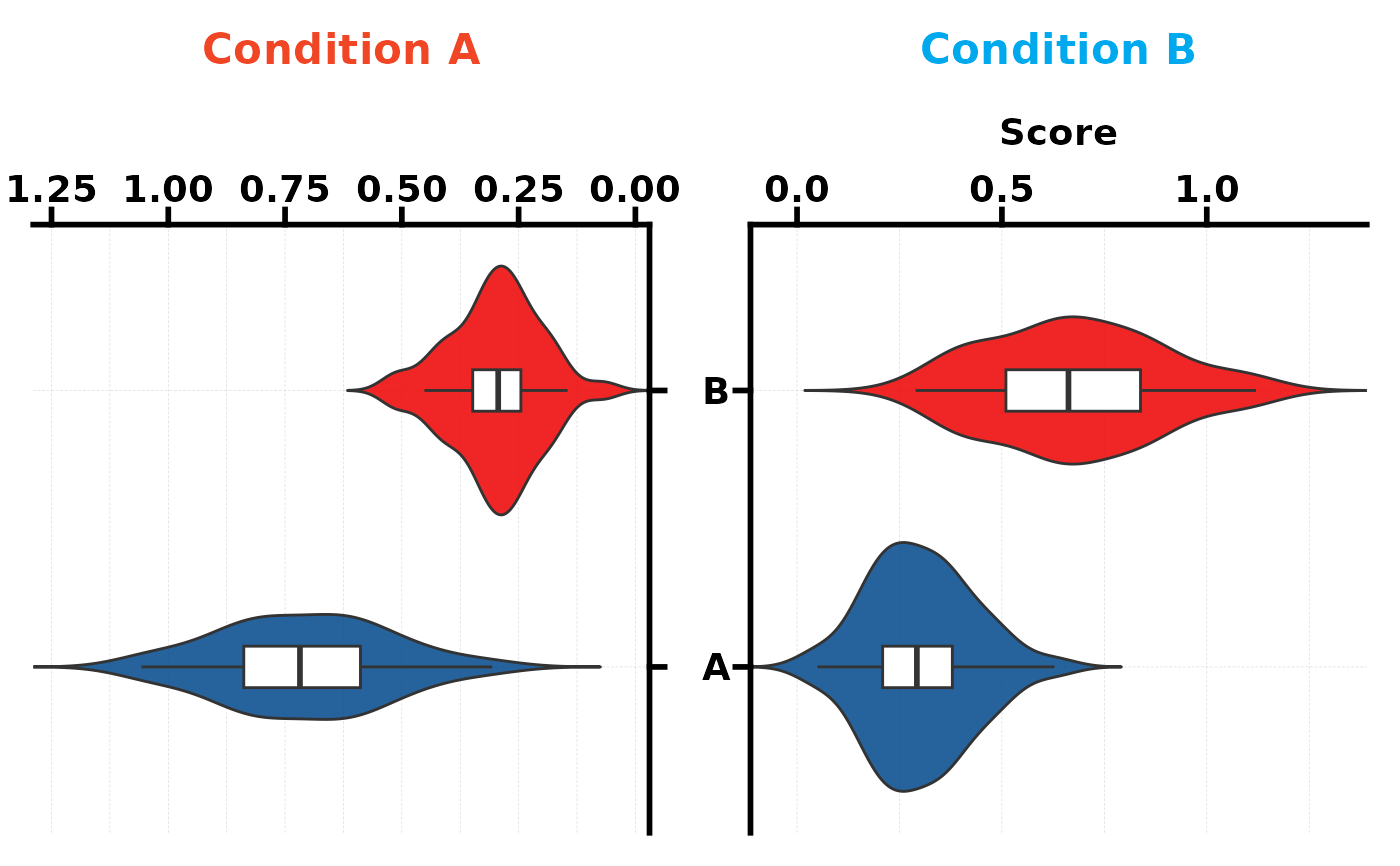

# --- Violin mode ---
set.seed(123)
dl <- data.frame(A = rnorm(40, 0.7, 0.2), B = rnorm(40, 0.3, 0.1))
dr <- data.frame(A = rnorm(40, 0.3, 0.15), B = rnorm(40, 0.7, 0.2))
PlotButterfly(type = "violin", data.left = dl, data.right = dr,
              left.title = "Condition A", right.title = "Condition B")
#> Warning: Vectorized input to `element_text()` is not officially supported.
#> ℹ Results may be unexpected or may change in future versions of ggplot2.

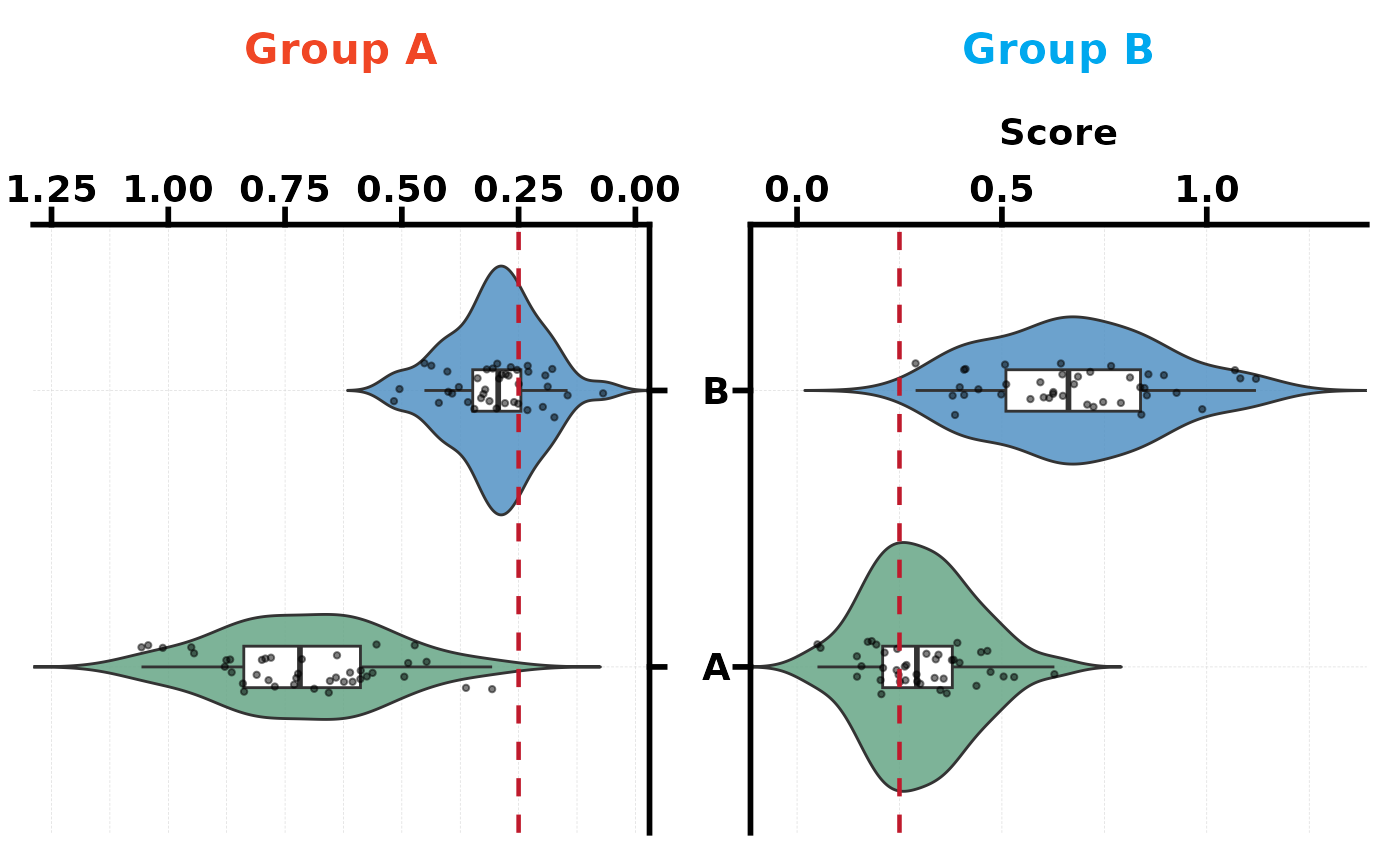

# Violin with reference line and custom colours
PlotButterfly(type = "violin", data.left = dl, data.right = dr,
              left.title = "Group A", right.title = "Group B",
              palette = c("#66a686", "#5292c4"),
              ref.line = 0.25, add_point = TRUE)
#> Warning: Vectorized input to `element_text()` is not officially supported.
#> ℹ Results may be unexpected or may change in future versions of ggplot2.
