Overlay a boxplot layer — fmt_boxplot • UtilsR

Adds geom_boxplot on top of existing layers (e.g. violin, jitter). Outliers are suppressed by default.

Usage

fmt_boxplot(plot, boxplot.args = list(), inherit.aes = TRUE)

Arguments

plot: A ggplot, patchwork, or list of ggplots.
boxplot.args: Named list of arguments passed to ggplot2::geom_boxplot. Defaults include width = 0.3, alpha = 0.2, na.rm = TRUE.
inherit.aes: Whether to inherit aesthetics from the parent plot.

Value

Same type as input.

See also

Other plot formatting: fmt_axis(), fmt_bg(), fmt_com(), fmt_expand(), fmt_his(), fmt_legend(), fmt_plot(), fmt_point(), fmt_ref(), fmt_scale(), fmt_strip(), fmt_tag()

Examples

library(ggplot2)
p <- ggplot(iris, aes(Species, Sepal.Length)) + geom_violin()

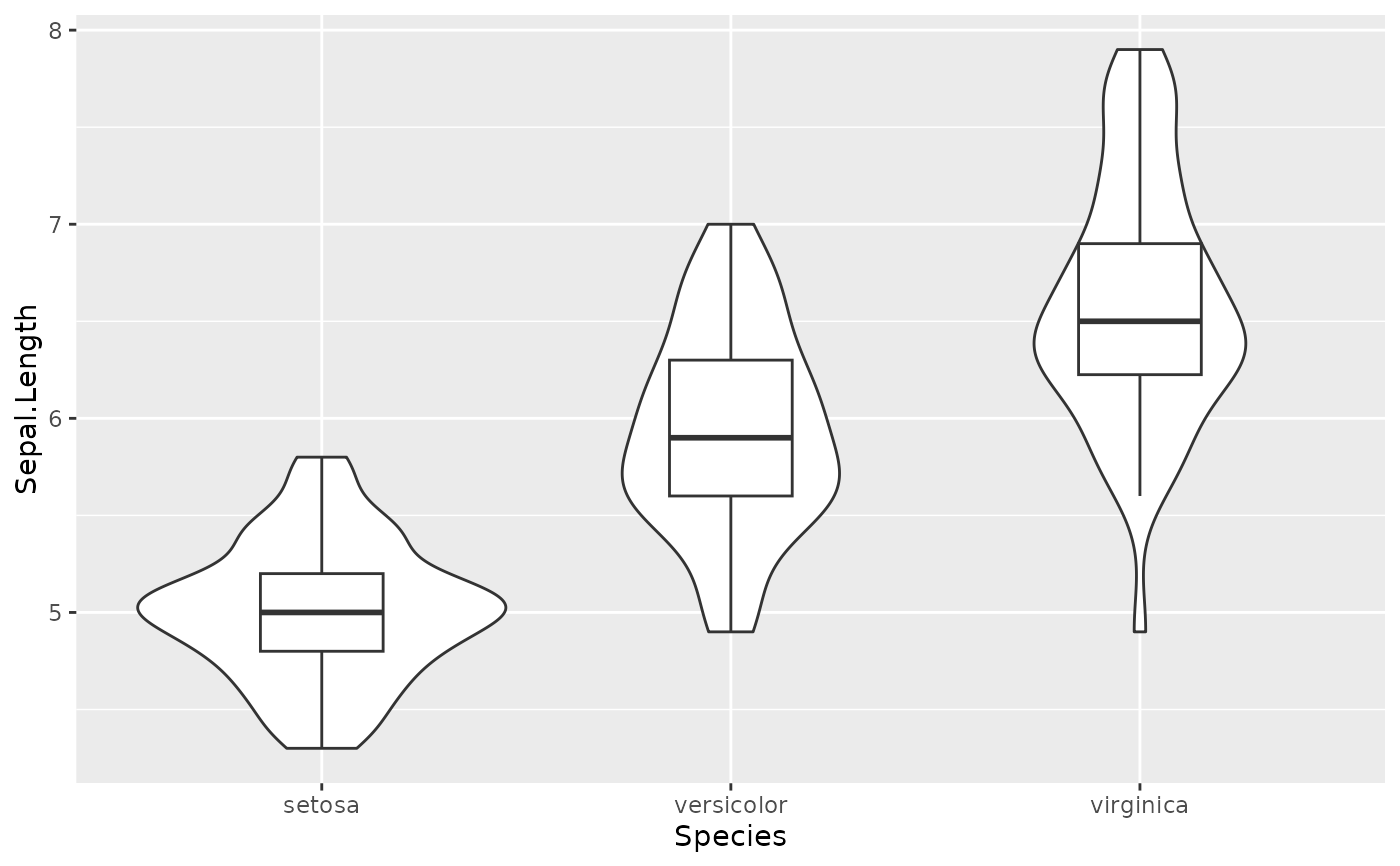

fmt_boxplot(p)

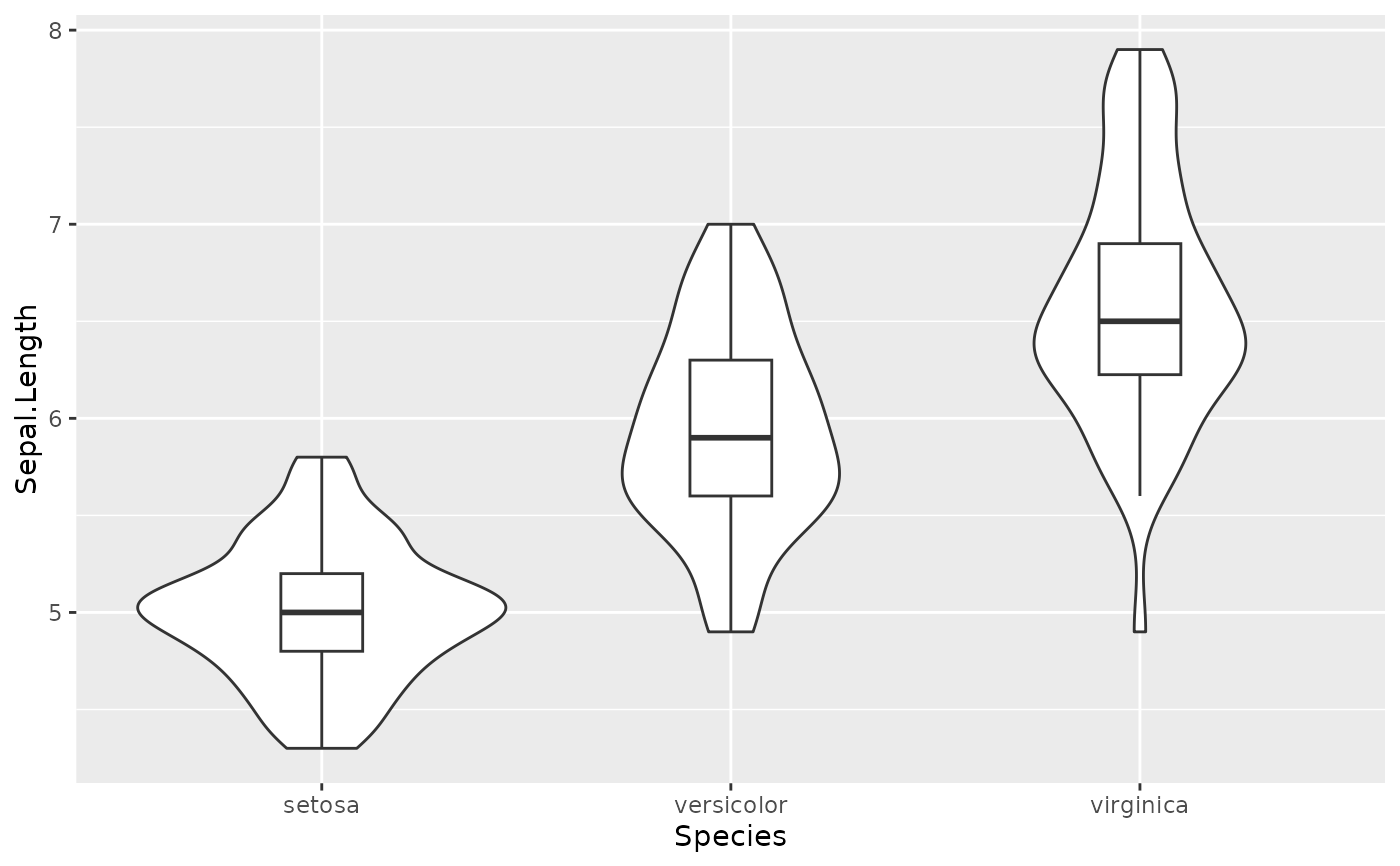

fmt_boxplot(p, boxplot.args = list(width = 0.2, alpha = 0.5))
